Touchpad FZ-N1
Mobile Solutions True to Your Work

Previous
Next
Overview

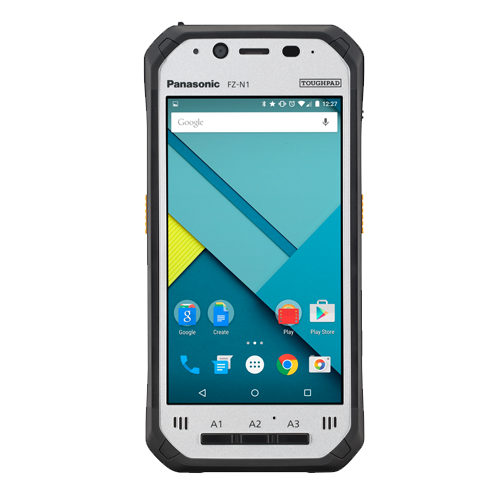

The Toughpad FZ-N1 with Android™ 5.1.1 is one of the thinnest and most lightweight handheld tablets in the 4.7” category. The device offers numerous unique features, including an angled rear barcode reader which protects users from repetitive strain and enhances productivity, and an optional passive and active pen for precise handwriting and signature capture.
The FZ-N1 brings together the best of handheld, smartphone and barcode reader functionality into a single rugged and hard working 4.7” tablet. Thanks to its fully-rugged design, with MIL-STD-810G certification, IP67 rating, 1.8-metre drop resistance* and the ability to withstand as many as 1,000 tumbles from a height of 1 metre, the device delivers a long life span and very low TCO. The user-replaceable and warm-swappable, battery combined with a range of accessories such as carry and mounting solutions, make it a truly mobile device. Along with the FZ-F1 Windows 10 IoT Mobile Enterprise version, the FZ-N1’s state-of-the-art Qualcomm® quad-core processor, together with 2GB RAM, guarantees high performance.
The FZ-N1 brings together the best of handheld, smartphone and barcode reader functionality into a single rugged and hard working 4.7” tablet. Thanks to its fully-rugged design, with MIL-STD-810G certification, IP67 rating, 1.8-metre drop resistance* and the ability to withstand as many as 1,000 tumbles from a height of 1 metre, the device delivers a long life span and very low TCO. The user-replaceable and warm-swappable, battery combined with a range of accessories such as carry and mounting solutions, make it a truly mobile device. Along with the FZ-F1 Windows 10 IoT Mobile Enterprise version, the FZ-N1’s state-of-the-art Qualcomm® quad-core processor, together with 2GB RAM, guarantees high performance.
Key Features
- 4.7" Rugged Tablet with Android 6.0.1 - Qualcomm® MSM8974AB 2.3GHz Quad Core
- Wi-Fi with GPS or Dual SIM multi-carrier 4G LTE data support with voice capability.
- Bluetooth® 4.1. WUXGA 800 NIT screen 10-point capacitive multi touch with glove touch mode.
- MIL-STD-810G, 6' Drop, All-weather IP65 and IP67 Dust and Water-resistant design
- High volume 100db speaker with noise suppression and echo cancellation microphone
- Standard Battery : Li-ion 3.8V, 3200mAh, Optional long life battery: Li-ion 3.8V, 6,400mAh
Product Specifications
- Weight : 0.61 lbs.
- Warranty : 3-year limited warranty, parts and labor
- Wireless : Dual SIM multi-carrier 4G LTE mobile broadband with GPS, Bluetooth® 4.1, Near Field Communication (NFC)
- Certification : MIL-STD-810G, 6' Drop, All-weather IP65 and IP67 Dust and Water-resistant design
- Battery : Standard battery : Li-ion 3.8V, 3200mAh, Optional Long life battery : Li-ion 3.8V, 6400mAh
- Display : 4.7-inch high definition 1280X720 daylight-viewable display with 10-point capacitive touch
- Storage & Memory : Memory 2GB, Storage eMMC: 16 GB, Additional storage with Storage Card : 2GB to 64GB
- Durability : Fully Rugged
- Software : Android 6.0.1 (Marshmallow)
- CPU : Qualcomm® MSM8974AB 2.3GHz Quad Core
